    looking at the output stage,

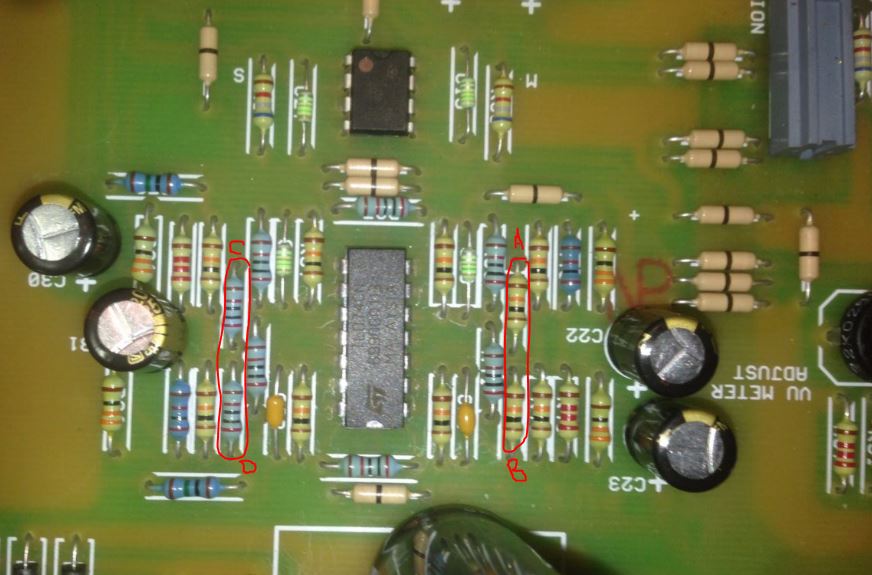

    the A&B resistances are 10k but the C&D are 20K, should not be of the same value?

    also the pins 2&5 goes through A&B to ground but the pins 10&13 goes to C&D but not to ground,shoould be connected to ground as A&B?

    Reply To: SC2.2 voltage regulator 1http://www.vaporstudio.com/studio/joemeek_pcb01.jpg" />

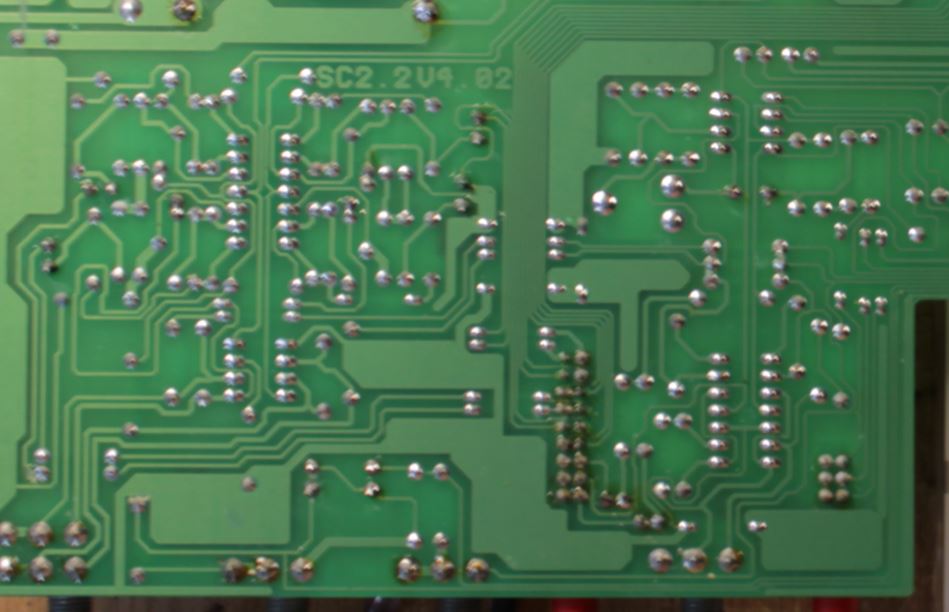

    Reply To: SC2.2 voltage regulator 2http://www.vaporstudio.com/studio/joemeek_pcb02.jpg" />
